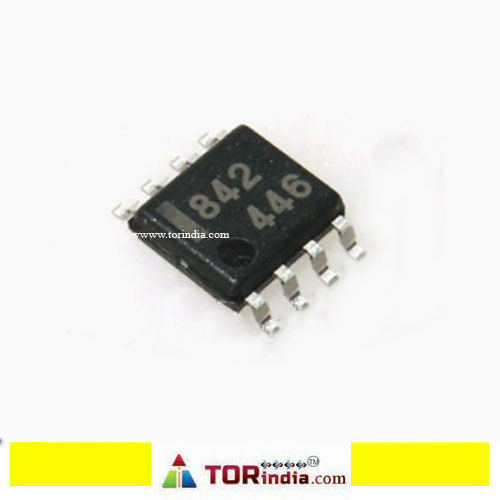

Dual Amplifier: Contains two independent high-speed operational amplifiers within a single SOP-8 package.High Slew Rate: Offers a typical slew rate of 7 V/µs (at V+ = +5 V, V- = GND). Some sources list it as 8.5 V/µs.Wide Gain Bandwidth Product: Provides a gain bandwidth product of 3.5 MHz (at f = 100 kHz).Low Offset Voltage: Features a typical input offset voltage of ±2 mV. Some sources list it as 1 mV.Low Input Bias Current: Offers a typical input bias current of ±6 nA. Some sources list it as 120 nA or 140 nA.Wide Supply Voltage Range: Operates from a wide supply voltage range of +3 V to +32 V.Capacitive Load Stability: Includes stability for capacitive loads and a built-in phase correction circuit.Built-in Short-Circuit Protection: Features a built-in output short-circuit protection circuit.Temperature Range: Operates within an ambient temperature range of -40°C to +85°C.Pin Compatibility: Pin-compatible with standard dual operational amplifiers
