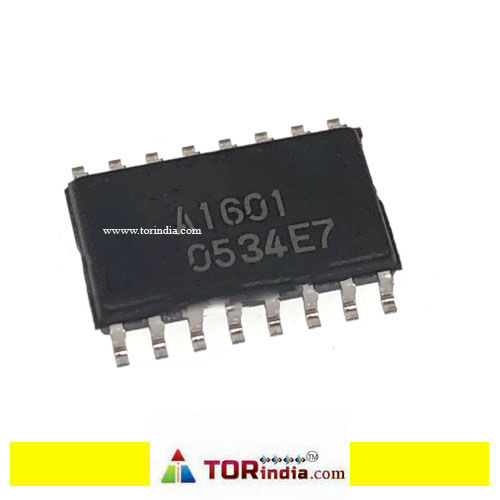

Integrated Power MOSFET Array: The UPA1601GS is a single chip containing multiple N-channel power MOSFETs.Direct Driving Capability: It can be directly driven by standard logic ICs or microcomputers, including 4V driving.High Output Voltage: The maximum output voltage is 30V.High Output Current: It can handle a maximum output current of 500mA per unit for pulse applications. The DC output current is 460mA per unit.Low On-Resistance (Ron): It has a typical on-resistance of 3? at an output current of 150mA and a gate-source voltage of 4V.Wide Operating Temperature Range: Operates from -40°C to +85°C.
