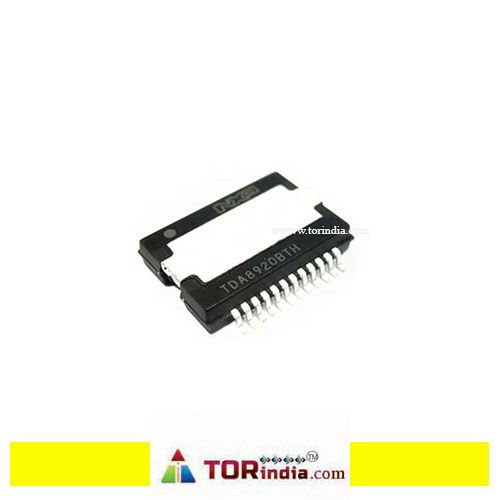

- Supply Voltage: Operates within a range of ±12.5 V to ±30 V, with a non-operating maximum of ±32 V.
- Quiescent Current: Typically 50 mA, ensuring low power consumption during idle periods.
- Output Power:
- Stereo Single-Ended (SE) Configuration:
- At 3 ? load: 110 W per channel at 10% Total Harmonic Distortion (THD).
- At 4 ? load: 86 W per channel at 10% THD.
- Mono Bridge-Tied Load (BTL) Configuration:
- At 6 ? load: 210 W at 10% THD.
- Operating Temperature Range: -40°C to +85°C, suitable for various environmental conditions.
Features:
- Zero Dead Time Switching: Minimizes switching losses and electromagnetic interference (EMI).
- Advanced Current Protection: Includes output current limiting to protect against overcurrent conditions.
- Smooth Start-Up: Ensures pop noise-free start-up by gradually applying the DC output offset voltage.
- High Efficiency: Achieves high power output with low heat generation.
- Low Quiescent Current: Consumes minimal power during idle periods.
- Flexible Configuration: Can be used as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL) configuration.
- Fixed Gain: Provides a gain of 30 dB in SE mode and 36 dB in BTL mode.
- High Supply Voltage Ripple Rejection: Maintains performance despite supply voltage fluctuations.
- Internal Switching Frequency Control: The internal switching frequency can be overridden by an external clock for synchronization purposes.
- Comprehensive Protection: Includes full short-circuit protection across load and to supply lines, thermal protection, and undervoltage lockout.
Applications:
- Television sets
- Home audio systems
- Multimedia systems
- All mains-fed audio systems
- Car audio amplifiers
