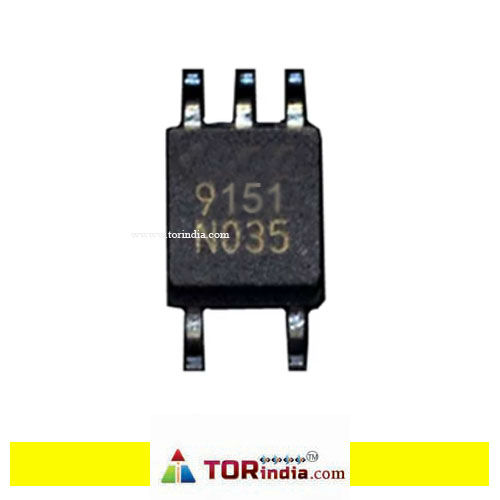

Description: OPTOISO 3.75KV PUSH PULL 5SO
Detailed description: Logic Output Optoisolator 15Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 15kV/µs CMTI 5-SO
Number of channels: 1
Input - Input Side 1/Input Side 2: 1/0
Voltage - Isolation: 3750Vrms
Common-mode transient immunity (minimum): 15kV/µs
Input type: DC
Output type: push-pull/totem pole
Current - Output/Channel: 2mA
Data rate: 15Mbps
Propagation delay tpLH/tpHL (max): 60ns, 60ns
Rise/fall time (typ): 4ns, 4ns
Voltage - Forward (Vf) (typ): 1.65V
Current - DC forward (If): 20mA
Voltage - Power supply: 4.5 V ~ 5.5 V
Working temperature: -40°C ~ 100°C
Installation type: surface mount
Package/Casing: 6-SOIC (0.173", 4.40mm wide), 5-lead
Other names: PS9151AX
