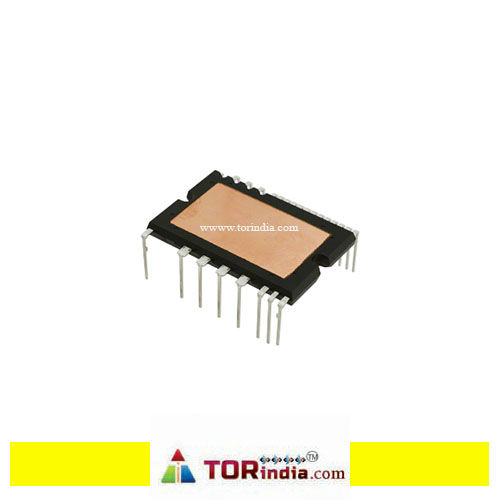

PS219B3-S IGBT

• Inverter Section:

  • Collector-Emitter Voltage (V_CES): 600 V
  • Continuous Collector Current (I_C): 10 A
  • Peak Collector Current (I_CP): 20 A (less than 1 ms)
  • Supply Voltage (V_CC): 450 V
  • Junction Temperature (T_j): -20°C to +150°C

• Control (Protection) Section:

  • Control Supply Voltage (V_D): 20 V
  • Input Voltage (V_IN): -0.5 V to V_D + 0.5 V
  • Fault Output Supply Voltage (V_FO): -0.5 V to V_D + 0.5 V
  • Fault Output Current (I_FO): 1 mA

• Total System:

  • Self-Protection Supply Voltage Limit (V_CC(PROT)): 400 V (short-circuit protection capability)
  • Module Case Operation Temperature (T_C): -20°C to +100°C
  • Storage Temperature (T_stg): -40°C to +125°C
  • Isolation Voltage (V_iso): 1500 Vrms (60 Hz, sinusoidal, AC 1 minute, between connected all pins and heat-sink plate)

Features:

• Integrated drive, protection, and system control functions:
  • P-side: Drive circuit, high-voltage high-speed level shifting, control supply under-voltage (UV) protection
  • N-side: Drive circuit, control supply under-voltage protection (UV), short-circuit protection (SC)
• Fault signaling corresponding to SC fault (N-side IGBT) and UV fault (N-side supply)
• Input interface with 3V and 5V line Schmitt trigger receiver circuit (High Active)
• UL Recognized: UL1557 File E323585
