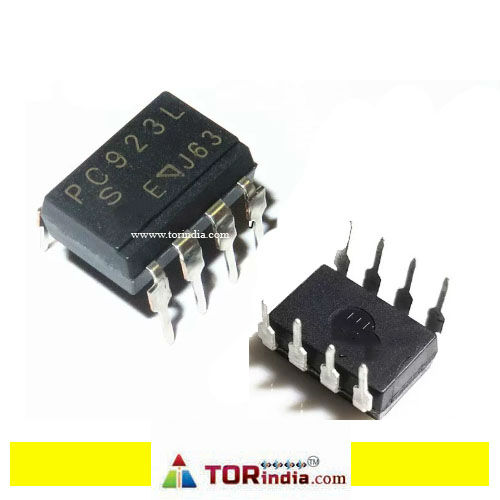

PC923L ORIGINAL, PC923 OPTOCOUPLER, High Speed, Gate Drive DIP 8 pin OPIC Photocoupler

High-Speed Response: Provides fast response times, typically with propagation delays (tPHL, tPLH) of a maximum of 0.5 µs. This makes it suitable for high-frequency switching applications like inverters.Built-in Direct Drive Circuit: Includes a built-in circuit optimized for driving MOSFETs and IGBTs, delivering peak output currents of up to 0.6 A for the PC923L and 0.4A for the PC923.High Isolation Voltage: Offers strong electrical isolation between the input and output, with an isolation voltage of 5.0 kVrms. This ensures the protection of sensitive control circuitry from high-voltage sections of the power circuit.High Noise Immunity: Features high common-mode rejection voltage, specifically at least -15kV/µs for positive transients (CMH) and 15kV/µs for negative transients (CML) for the PC923L. This helps prevent the malfunction of power semiconductors in noisy environments.Wide Operating Supply Voltage Range: Can operate with a wide output supply voltage range of 15 V to 30 V.Built-in Internal Connection Diagram: Includes a detailed internal connection diagram in the datasheet for easy integration.UL Recognized: Recognized by Underwriters Laboratories (UL) (file No. E64380), signifying compliance with safety standards.

Variants:
