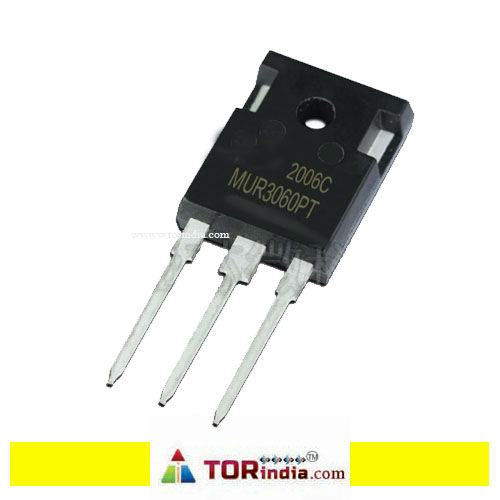

MUR3060PT, suitable 30CPU04, MUR3020PT TO-247AD FEP30DP DIODE 200V 30A RECTIFIER Diode Switching 200V 30A-3-Pin-3+Tab-TO-247AD

• Device Type: Ultrafast Dual Diode
• Configuration: Common Cathode
• Package: TO-218-3 (SOT-93)

Electrical Characteristics

• Maximum Repetitive Reverse Voltage (VRRM): 600 V
• Average Rectified Forward Current (IF(AV)) per Diode: 15 A
• Non-Repetitive Peak Surge Current (IFSM): 200 A
• Forward Voltage (VF) at 15 A, 25°C: 1.5 V
• Reverse Recovery Time (trr): 60 ns
• Operating Junction Temperature Range (TJ): -65°C to 175°C

Features

• Ultrafast Recovery Time: Ensures efficient high-speed switching.
• High Voltage Capability: Up to 600 V.
• Low Forward Voltage Drop: Reduces power loss and improves efficiency.
• High Surge Current Capability: Handles high inrush currents.
