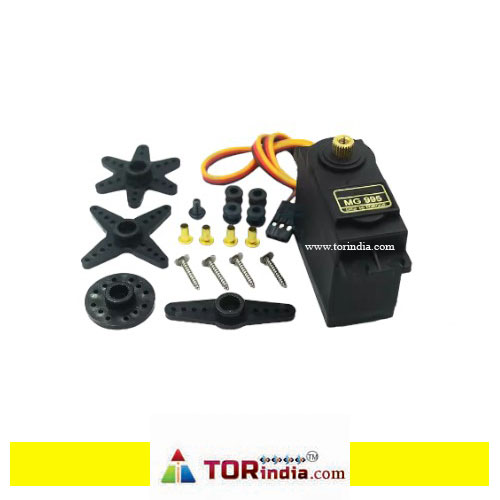

MG995 180 degrees MG995 plastic gear

• Model: MG995
• Type: Standard-size servo
• Operating Voltage: 4.8V – 7.2V
• Rotation Range: 180° (modified version)
• Gear Type: Metal gears
• Weight: ~55g

Performance Specifications

• Stall Torque:
  • 4.8V: ~9.4 kg·cm
  • 6.0V: ~11 kg·cm
• Operating Speed:
  • 4.8V: 0.20 sec/60°
  • 6.0V: 0.16 sec/60°
• Dead Band Width: ? 5?s

Physical Dimensions

• Size: 40.7mm × 19.7mm × 42.9mm
• Wire Length: ~30cm
• Connector Type: 3-pin (Signal, VCC, GND)

Control Specifications

• PWM Pulse Range: 500µs – 2500µs
• Neutral Position: 1500µs
• PWM Frequency: ~50Hz
