Description: IC DRIVER HIGH/LOW SIDE 8-SOIC
Detailed description: Half-Bridge Gate Driver IC Inverting 8-SO
Driver configuration: half bridge
Channel type: independent
Number of drives: 2
Gate type: IGBT, N-channel MOSFET
Voltage - Power: 17V (max)
Logic voltage - VIL, VIH: 1.5V, 3.6V
Current - Peak output (sink, source): 400mA, 650mA
Input type: inverted
High side voltage - maximum (bootstrap): 600V
Rise/fall time (typ): 50ns, 30ns
Working temperature: -40°C ~ 150°C (TJ)
Installation type: surface mount

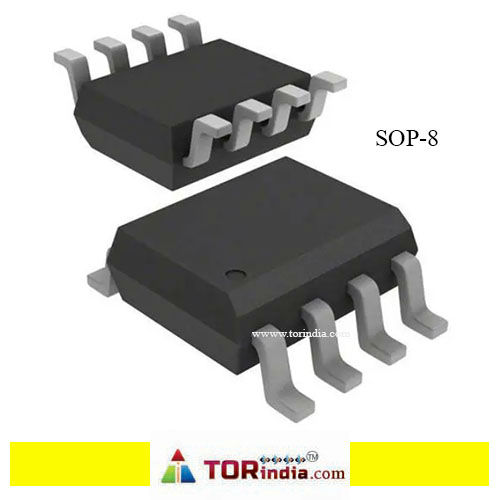

Package/Casing: 8-SOIC (0.154", 3.90mm wide)

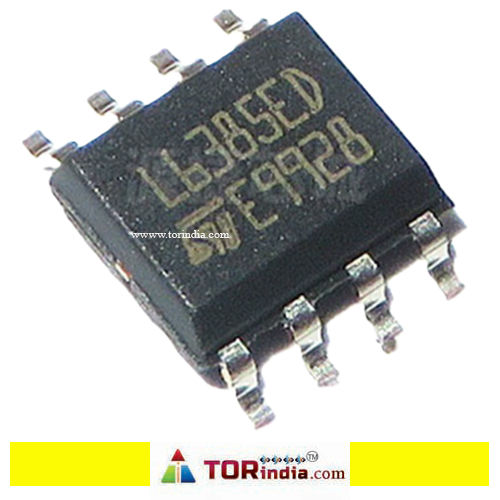

Basic part number: L6385
Other names: 497-1435-5 497-1435-5-ND 497-3650-5
