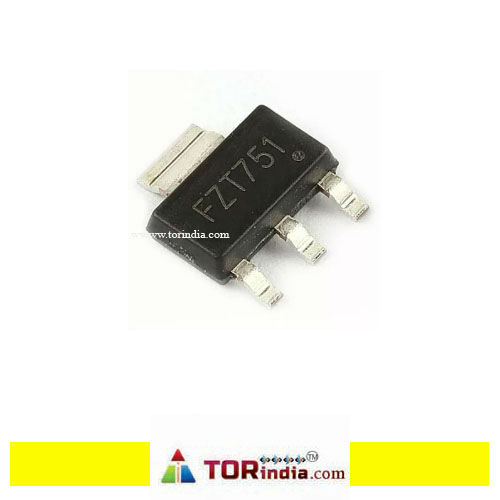

model: FZT751
Risk Level: 7.66
Is Samacsys? N
Shell connection: COLLECTOR
Maximum collector
current (IC): 3
A
Based on the maximum
capacity of the collector: 30 pF
Collector-emitter
maximum voltage: 60 V
Configuration: SINGLE
Minimum DC current
gain (hFE): 40
Moisture Sensitivity
Level: 1
Number of components: 1
Number of terminals: 4
Maximum Operating
Temperature: 150 °C
Peak Reflow
Temperature (Celsius): 260
Polarity/Channel
Type: PNP
Maximum power
dissipation (Abs): 2
In
Subcategories: Other
Transistors
Surface Mount: YES
Terminal surface: Matte
Tin (Sn)
Terminal type: GULL
WING
Terminal Location: DUAL
Maximum time at peak
reflow temperature: 40
Transistor
Applications: SWITCHING
Transistor component
materials: SILICON
Nominal transition
frequency (fT): 140
MHz
VCEsat-Max? 0.6
V
