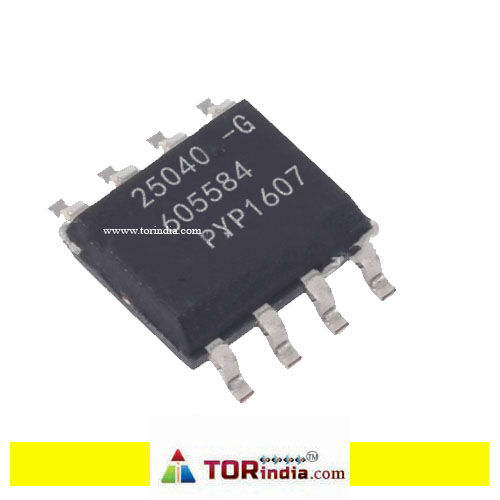

FM25040 SOP8,FM25040A-GTR

Memory Size and Organization: 4Kbit (512 x 8 bit) FRAM.Interface: SPI (Serial Peripheral Interface)Write Speed: Operates at bus speed, eliminating write delays associated with other nonvolatile memory types like flash or EEPROM.Endurance: Supports up to 10^14 read/write cycles, significantly more than typical EEPROMs.Data Retention: Offers 151-year data retention.Power Consumption: Low power consumption: 250 µA active current at 1 MHz and 4 µA (typical) standby current.Voltage Range: Operates from 4.5 V to 5.5 V.Temperature Range: Guaranteed over an industrial temperature range of -40 °C to +85 °C.Write Protection: Features hardware write protection via the Write Protect (WP) pin and software block protection options.RoHS Compliant: Yes.

Variants:
