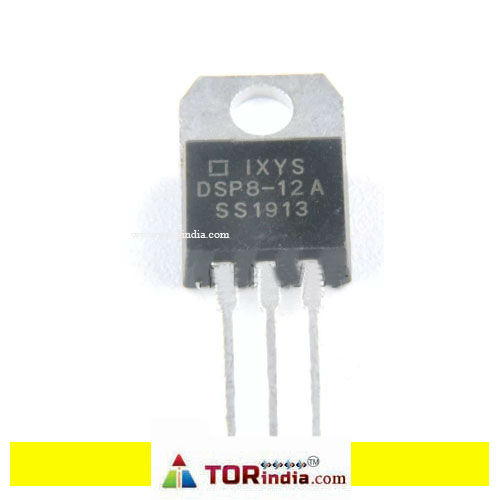

DSP8-12A DIODE ARRAY GP 1200V 11A TO220

• Diode Configuration: 1 Pair Series Connection
• Reverse Voltage (V_R): 1200 V
• Average Rectified Current (I_O): 11 A per diode
• Forward Voltage (V_F): 1.15 V at 7 A
• Reverse Leakage Current (I_R): 5 µA at 1200 V
• Operating Junction Temperature (T_J): -55°C to 175°C
• Package: TO-220-3, suitable for through-hole mounting

Features:

• High reverse voltage capability, making it suitable for applications requiring voltage blocking up to 1200 V.
• High average rectified current per diode, supporting up to 11 A, which is beneficial for high-current applications.
• Low forward voltage drop, contributing to reduced conduction losses and improved efficiency.
• Low reverse leakage current, enhancing the reliability of the diode in high-voltage applications.
• Wide operating junction temperature range, allowing for reliable performance in varying thermal conditions.
