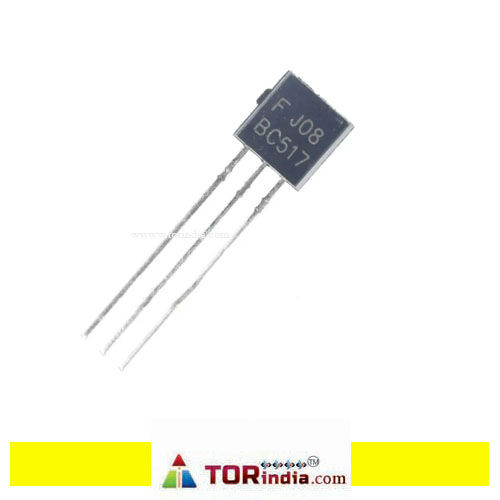

BC517 TO92 EQ C2062 MPSA25 MPSA29 BC617

(0 Review)
Item Code: 5500-TO-92-3-bc517

₹ 10.00

Status:
In Stock
Minimum Quantity:
1

Darlington Configuration: The BC517 combines two NPN transistors in a Darlington pair within a single package. This configuration offers extremely high DC current gain (hFE), typically 30,000 or more, meaning a very small base current can control a large collector current.Polarity: NPN.Package: TO-92 (TO-226AA or SOT54).Collector-Emitter Voltage (VCEO): 30V.Continuous Collector Current (IC): 1A or 1.2A.Power Dissipation (PD): 625mW.High Input Impedance: Makes it suitable for connecting to sensors or microcontrollers.Applications: Ideal for driving relays, lamps, LEDs, motors, and in stages where amplifying low gain signals is necessary, such as audio preamplifier stages.

Variants:

* TO-92-3

Category: SEMICONDUCTORS-IC-FET-SMD-TRANSISTOR

Rating And Reviews

Average User Rating

0

Rating Breakdown

model:	BC517
Risk level:	5.25
Maximum collector current (IC):	0.4 A
Collector-emitter maximum voltage:	30 V
Configuration:	DARLINGTON
Minimum DC current gain (hFE):	30000
Number of components:	1
Number of terminals:	3
Maximum operating temperature:	150 °C
Polarity/Channel Type:	NPN
Subcategory:	Other Transistors
Surface mount:	NO
Terminal form:	WIRE
Terminal location:	BOTTOM
Transistor component materials:	SILICON
Nominal transition frequency (fT):	250 MHz
