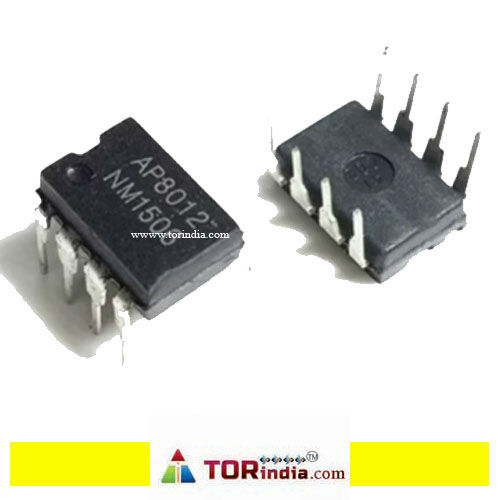

Integrated Power MOSFET: The AP8012A integrates both a Pulse Width Modulator (PWM) controller and a power MOSFET (often 800V avalanche-rugged) onto a single chip, simplifying circuit design and reducing the need for external components.Primary-Side Regulation (PSR): It operates in primary-side sensing and regulation, which eliminates the need for an opto-coupler and secondary-side control components like the A431.Constant Voltage (CV) and Constant Current (CC) Control: The IC integrates proprietary CV and CC control functions, allowing it to maintain a stable output voltage or current, which is ideal for battery charger applications.Adjustable Current and Output Power: The Constant Current (CC) point and the maximum output power can be adjusted externally using a sense resistor at the CS pin.Multi-Mode Operations: The device utilizes multi-mode operations (PWM/PFM) to optimize performance and efficiency across different load conditions.Low Standby Power: It is designed for low power consumption, achieving less than 75mW standby power to meet stringent energy efficiency standards.Comprehensive Protection Features: Includes a full suite of protection mechanisms with automatic self-recovery:Cycle-by-Cycle Current Limiting (OCP)Over-Temperature Protection (OTP)VDD Over-Voltage Protection (OVP)Under-Voltage Lockout Protection (UVLO)Soft-StartFeedback Loop Open ProtectionOutput Short Circuit ProtectionLow EMI Performance: Achieves low EMI (Electromagnetic Interference) through frequency modulation.Internal High Voltage Start-up Circuit: The device includes an internal high voltage start-up current source to reduce the system set-up time.Built-in Cable Drop Compensation: Improves load regulation by compensating for voltage drops across the output cable.Low Operating Current: The chip consumes very low operating current.No Abnormal Sound Work: Under constant voltage mode, the working frequency changes with load, ensuring no audible noise from no-load to full load.
