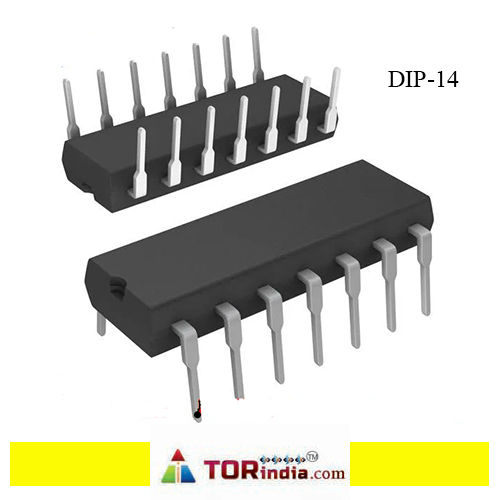

74HC04N 74HC04 SN74HC04N DIP-14DIP14

Hex Inverter Functionality: The IC contains six independent inverter (NOT) gates, each with a single input and a single output. Each inverter produces an output that is the logical complement of its input.High-Speed CMOS Technology: It utilizes advanced silicon-gate CMOS technology, which enables operating speeds similar to LSTTL (Low-Power Schottky Transistor-Transistor Logic) devices while maintaining the low power consumption characteristic of CMOS integrated circuits.Low Power Consumption: This feature is particularly useful for battery-powered devices and energy-efficient systems. It has a maximum quiescent current (ICC) of 20µA.Wide Operating Voltage Range: The 74HC04N can operate effectively across a supply voltage range of 2.0V to 6.0V, making it compatible with various digital systems.Output Drive Capability: It can source or sink up to 4mA at Vcc = 4.5V, allowing it to drive other logic circuits or components effectively. Additionally, it can drive up to 10 LSTTL loads.High Noise Immunity: Features like buffered inputs and potentially Schmitt-trigger inputs in some variations contribute to high noise immunity, ensuring signal integrity in electrically noisy environments.ESD Protection: It includes protection against electrostatic discharge (ESD) for increased durability and reliability during handling and operation.Standard DIP14 Package: The 14-pin PDIP package is easy to integrate into both prototyping and through-hole PCB designs.
